OPTICAL SYSTEM

Infinite Optical System

EYEPIECE

SW10X/22

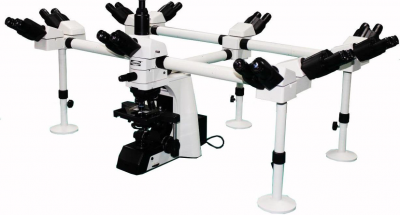

VIEWING HEAD

Seidentopf Trinocular Head, Inclined at 30° Interpupilary Distance 48 – 75 mm --- 1 No.

Seidentopf Binocular Head, Inclined at 30° Interpupilary Distance 48 – 75 mm   --- 9 Nos.

OBJECTIVE

Infinite Plan Objectives 4x, 10x, 40x, 100x

NOSEPIECE

Quintuple or Sextuple Nosepiece

CONDENSER

Swing Condenser N.A 0.9/0.25

ILLUMINATION

24 V/100W Halogen Lamp OR 3W S–LED Lamp

FOCUSING

Coaxial Coarse and Fine Adjustment

MECHANICAL STAGE

Rackless X-axis CERAMIC double plate stage 210x160 mm, X/Y Travel range 76x50mm Double slide holder

ACCESSORIES

Power Cord, Cedar Oil
