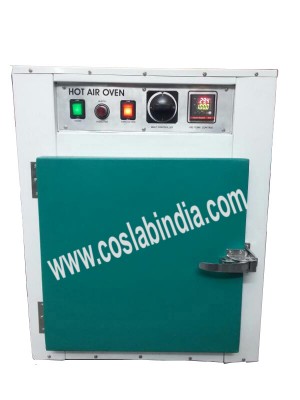

CLE-101 / 11001 - (HOT AIR UNIVERSAL OVEN (Memmert Type))

Model No:11001

    (Three side heating element)

    Outside made of mild steel with powder coated paint. Inside made of anodized aluminium /stainless steel. The double walled door asbestos gasket lining is fitted on heavy brass cast chromium plated hinges and has a latch type lock. Temperature can be controlled from few degrees above ambient to 250°C by thermostat. Heating elements are placed in the ribs at the bottom and sides. Built in L-Shape prismatic thermometer, with two shelves, works on 220/230V AC supply with or without air circulating fan.

    PLS SELECT THE INNER CHAMBER ALUMINIUM OR STAINLESS STEEL

    Chamber Size in mm (Approx.)

    H        W        D

    Chamber Size in Inches

    H        W        D

    No. of

    Shelves

    Capacity

    (Approx.)
    300 x 300 x 300 12” x 12” x 12”   2 28 Ltrs.
    350 x 350 x 350 14” x 14” x 14” 2 45 Ltrs.
    400 x 400 x 400   16” x 16” x 16”   2 65 Ltrs.
    450 x 450 x 450 18” x 18” x 18” 2 95 Ltrs.
    600 x 450 x 450   24” x 18” x 18” 2 125 Ltrs.
     600 x 600 x 600 24” x 24” x 24”  2 224 Ltrs.
     900 x 600 x 450 36” x 24” x 18” 2 252 Ltrs.
    900 x 600 x 600 36” x 24” x 24” 2 336 Ltrs.
     900 x 900 x 900   36” x 36” x 36” 3  480 Ltrs.
