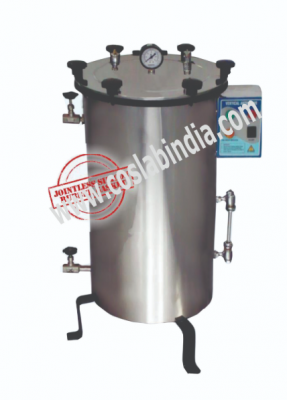

CLE-136 VSW / 11123- 11128

Model No:11123

    The outer chamber is made of heavy gauge stainless steel sheet duly polished.

    Inner Dimensions (in mm) 250x450 300x500 350x550 400x600 450x600 550x750
    Dia x Depth (in inches) 10x18 12x20 14x22 16x24 18x24 22x30
    Capacity (approx) 22 ltrs 40 ltrs 50 ltrs 78 ltrs 98 ltrs 152 ltrs
    Heater Load 1.5 KW 2.0 KW 3.0 KW 4.0 KW 4.0 KW 5.0 KW
    Sterlizing Pressure     1.2 kgf / cm sq.(15psi) at 121 deg cel.
    Pressure Guage     0-2.1 kgf / cm sq.(30psi)
    Operating Pressure     Upto 20psi
    Basket     Stainless Steel (Perforated / Wire Mesh)
    Power Supply     220 Volts 50 Hz AC
